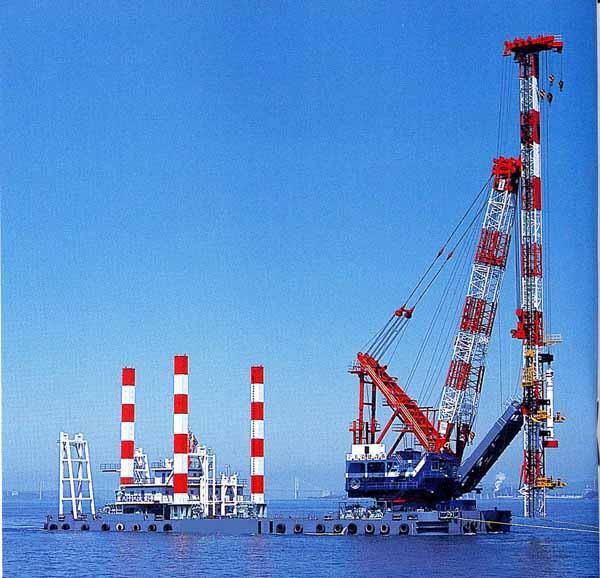

Pile Driving Barges

Built June 2001 in JAPAN

RIG BODY:
RIG BODY DIMENSION:  LBD: 70.00 X 26.00 X 4.70M
CREW: 12
DISPLACEMENT: 3056T
OPERATING WINCHES:  ELECTRICALLY OPERATED HYDRAULIC
                        20T/10X12/24M/MIN DOUBLE X 2
20T/10X12/20M/MIN SINGLE X 2
                        20T/10X12/20M/MIN SINGLE X 2
                        ALL PURPOSE: 7.5T/3.75tX15/30M/MIN X 2

MAIN GENERATOR: 400 KVA X2
BACK UP GENERATORS: 150 KVA X 1
CRANE APPARATUS:
TYPE: SKK-7000DT-L
RATED LOAD: TOTAL REVOLVING TYPE 550T
FIRST AUXILIARY 250T SECOND AUXILIARY 100T
MOTOR: MITSUBISHI HEAVY INDUSTRIES CO.LTD
S12N-MPTA 963KW/1800RPM
 MAX JIB LENGTH: 70M (32M+10M+10M+10M+8M)
81M ABOVE WATER
MAIN WINDING DRUM: STRAIGHT WIND 45T(45T X 54M/S) X 1
FIRST AUXILIARY WINDING DRUM: STRAIGHT WIND 25T(25T X 80M/S) X 1
SECOND AUXILIARY WINDING DRUM: STRAIGHT WIND 25T(25T X 80M/S) X 1
MISCELLANEOUS USE DRUMS: STRAIGHT WIND 25T 10T 3T 9
HOOK: 550T, 250T, 100T, 50T, 40T, 25T, 20T, 8T, 2T

PILE DRIVER:
MAX LENGTH OF PILE: 75M
Hydraulic grasping fork: three sections, extend-retract, hydraulic
                              (max length: 26.5m)
hydraulic hammer: can fix (ihc s280, NH115B, NH150B, ECT)
                        now fixed with nh115b, nh150b
maximum hammer dia: 2000mm (max weight: 60t)
(Price and details would be guided to named buyers upon firm interest, But W.O.G)
